Now that we know how to setup the renderer lets take a look at Camera, Lights, Environment Fog and Render Elements (formerly know as Multipass). You will find them all under V-Ray menu, this is only the beta but you will find a lot more stuff included in the final release.

-ITA: Ora che sappiamo come impostare il motore vediamo Camera, Luci, Environment Fog e Render Elements(conosciuto in precedenza come Multipass). Li troviamo tutti organizzati nel menù Vray, notate che si tratta della beta ma troverete molto altro nel prodotto finale.

PHYSICAL CAMERA

Speaking of Physical Camera everything has been reorganized, we will need to set the exposure with typical reflex Camera settings, then we can tune DOF and motion blur. Right now Focus distance needs to be set manually, but in the final release you will be able to select it interactively.
White balance can be set directly in VFB, therefore we can leave it as is.

-ITA: Se prendiamo la Physical Camera tutto è stato riorganizzato, ci interesseranno soprattutto i parametri di esposizione tipici di una fotocamera reflex, la profondità di campo, e il motion blur. Il punto di messa a fuoco al momento va settato manualmente ma nella release finale sarà possibile selezionarlo interattivamente.
Per quanto riguarda il white balance si tratta di un’operazione che possiamo impostare direttamente dal VFB quindi possiamo anche lasciarlo neutro.

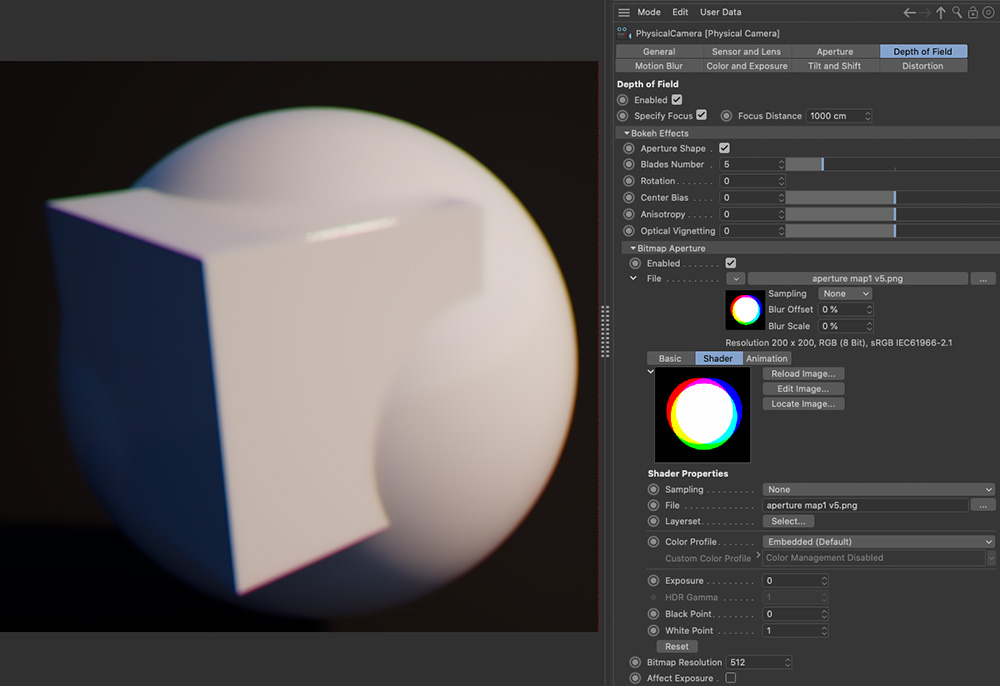

I am obviously giving you the basic info so that you can start using the new engine right away. But if you want to go more in depth you can do anything through Physical Camera, you can structure the form of the blades so that you can create complex Bokeh effects or even chromatic aberrations like in the example below.

-ITA: Naturalmente mi sto limitando all’essenziale per aiutarvi a muovere i primi passi sul nuovo motore, ma a voler approfondire potete fare davvero di tutto attraverso la Physical Camera, strutturando la forma dell’apertura del diaframma per riprodurre effetti Bokeh complessi o anche aberrazioni cromatiche come nell’esempio.

LIGHTS

Lights have been reorganized as well, but the settings are similar to the ones of 3.7. A big change has happened instead with managing Physical Sun/Sky.

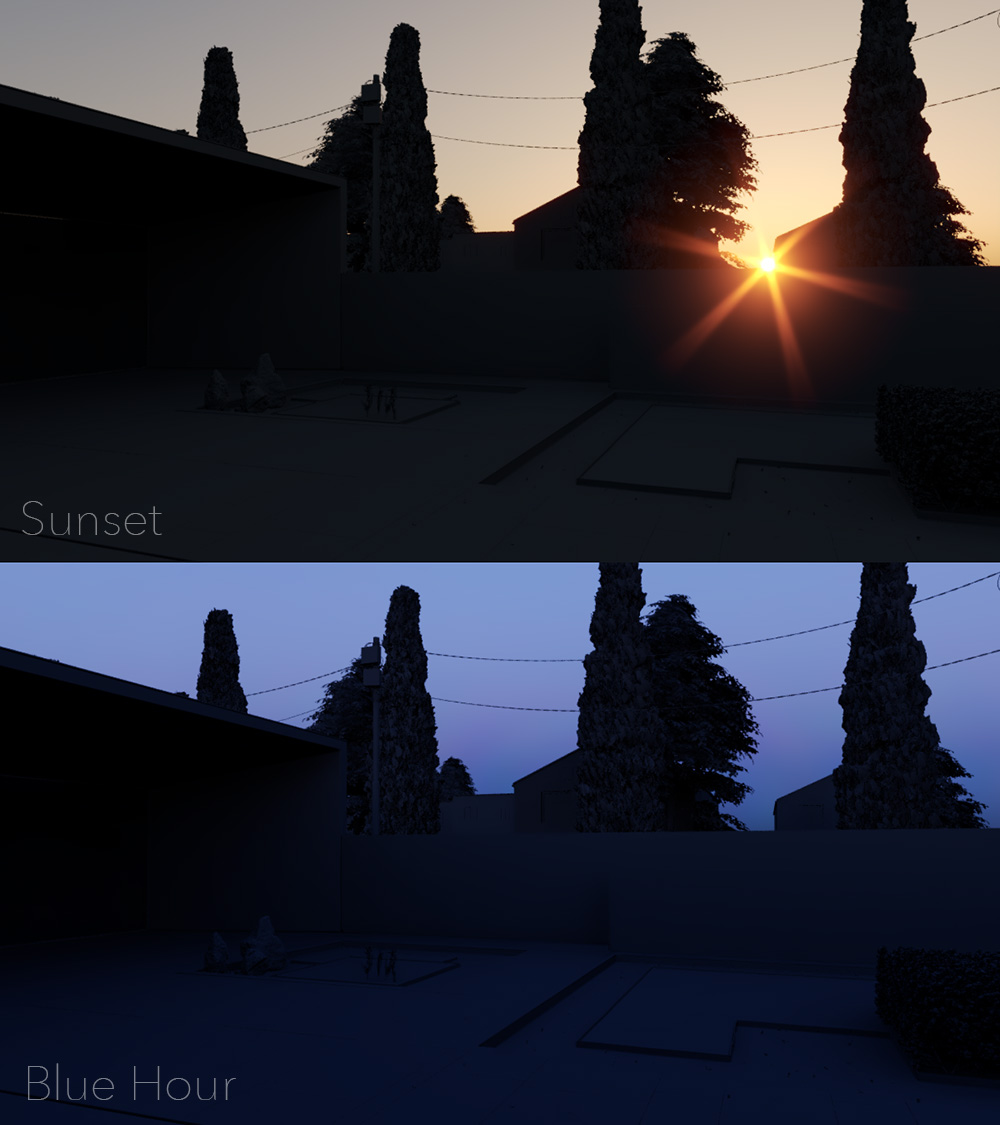

They are now two separate objects that can be created from the lights menu. Even though parameters have been reorganized they are still similar to the past except for the new Physical Sky model, selected by default it has been improved greatly especially during dusk and blue hour.

-ITA: Anche le luci sono state riorganizzate ma grosso modo i settaggi sono simili a quelli della 3.7, un cambiamento sostanziale c’è stato invece per la gestione del Physical Sun/Sky.

Ora sono due oggetti separati che però possono essere creati contestualmente dal menù delle luci. Sebbene riorganizzati i parametri anche quì sono simili fatta eccezione per il nuovo sistema di cielo fisico già selezionato di default che è stato enormemente migliorato, soprattutto in condizioni di crepuscolo e blue hour.

For all the other light sources we can leave them on a neutral white if we want to modify them through Light Mix, and as we’ll see VFB2 will let us modify intensity and temperature directly in post production. Intensity can be edited in post production, but it is always best to use real values in lumens (that pairs well with a correct exposure). Through VFB2 we will be able to modify intensity, but to obtain good results and let the engine work well it is best to have a well lit scene, neither too dark nor too overexposed. This way once the render is completed you will only need to make reasonable changes and nothing too dramatic. I would like to remind you of the camera’s autoexposure that I mentioned in the previous post.

Dome light has been greatly improved, therefore if you use an .HDR render time will be similar to a physical sun/sky, therefore a lot faster than the past. The use of portal light for interiors is not necessary anymore .

-ITA: Per quanto riguarda le altre fonti luminose, come vedremo il VFB2 ci dà la possibilità di editare intensità e temperatura direttamente in post produzione, quindi la potremmo anche lasciare su un bianco neutro se vogliamo lavorarci tramite il Light Mix.

Sebbene anche l’intensità potrà essere editata in post, è sempre una buona regola avere valori verosimili in lumens(abbinati ovviamente ad una corretta esposizione). Nel VFB2 potremmo cambiare l’intensità ma per far lavorare bene il motore è meglio avere a monte una scena decentemente illuminata, ne troppo buia, ne sovraesposta, in modo da rimandare a fine render solo cambiamenti ragionevoli e non drammatici. Vi ricordo a questo proposito la funzione di autoexposure della camera, di cui ho parlato nel precedente blogpost.

Sempre parlando di luci, il sampling delle Dome light è stato molto migliorato, per cui utilizzando file .HDR i tempi saranno molto più simili a quelli di un semplice Physical Sun/Sky, quindi molto più rapidi rispetto al passato. Sempre per via delle ottimizzazioni, oggi l’utilizzo di Portal light negli interni non è più necessario.

ENVIRONMENT FOG

Environment Fog has been moved under Vray menu. With just a few clicks you can obtain interesting volumetric effects by just modifying the basic parameters tab. The more advanced users will have total control through the more advanced settings.

-ITA: L’Environment Fog nella nuova versione è stato ricollocato tra i vari oggetti di scena di Vray, con pochi click potrete ottenere interessanti effetti volumetrici, vi basta lavorare sul tab dei Basic Parameters ma i più esigenti potranno avere totale controllo su ogni singolo aspetto tramite i settaggi più avanzati.

RENDER ELEMENTS

Just like everything else even the old Multipass system has been edited. Now you will find all channels under Render Elements. To activate them you will only need to drag all the needed elements to the window on the right, this way you will find them as channels in VFB. To modify the parameters of these elements you only need to click on them. Many things have been added to the Render Elements, the most interesting is Light Mix that we will talk about in the next blog posts.

-ITA: Così come il resto anche il vecchio sistema di Mutipass è stato rivisto, ora troviamo tutti i canali sotto la voce Render Elements. Ci basta trascinare gli elementi che ci interessano nella finestra di destra per attivarli e ritrovarli tra i canali del VFB, per i parametri basta cliccare sopra l’elemento per poterli editare. Tra i Render Elements sono state aggiunte moltissime cose utili, prima tra tutte il Light Mix, ma sarà argomento dei prossimi blogpost.

Proxy are still a work in progress so we’ll talk about them in the future.
